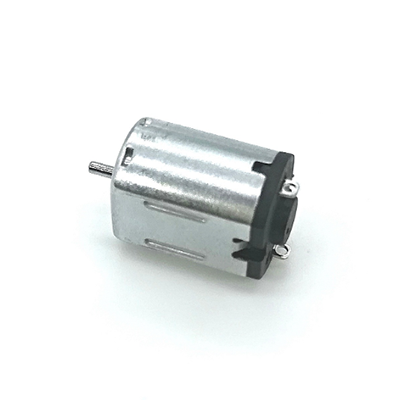

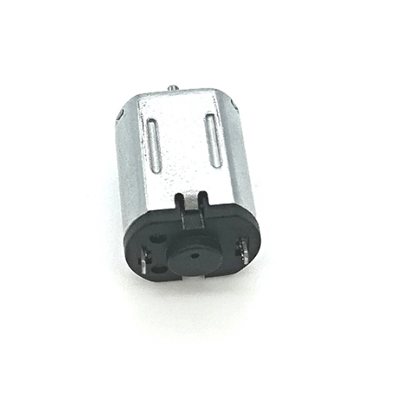

TF-M11F-09120 4.5V 33000rpm 玩具馬達 舵機馬達
馬達特點:
低噪音
馬達壽命長
高精度
型號: TF-M11F-09120
電壓: 1.0-6.0V
重量:3.0g

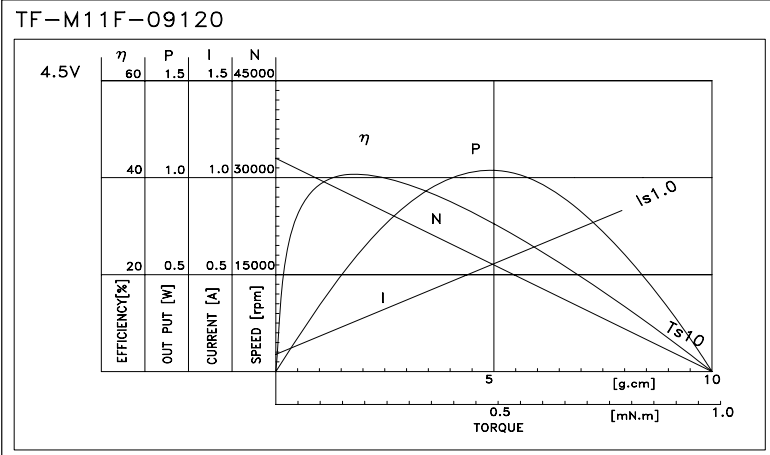

CONDITION @ 4.5V | TYPE類型 | VALUE數(shù)值 | TOLERANCE |
NO LOAD 空載 | SPEED速度 (rpm) | 33000 | ±15% |
CURRENT 電流(A) | 0.08 | 0.1MAX | |
AT MAXIMUM EFFICIENCY 最大效率 | SPEED速度 (rpm) | 25724 | ±15% |
CURRENT電流 (A) | 0.28 | 0.34MAX | |
TORQUE扭力 (mN.m) | 0.22 | 0.17MIN | |
TORQUE扭力 (g.cm) | 2.20 | 1.76MIN | |
OUTPUT功率 (W) | 0.58 | 0.47MIN | |
EEF效率 (%) | 45.7 | 36.6MIN | |
STALL堵轉 | TORQUE扭力 (mN.m) | 0.98 | 0.78MIN |
TORQUE扭力 (g.cm) | 10 | 8MIN | |
CURRENT電流 (A) | 1 | 1.2MAX |
